SPECIFICATIONS |
R80 |
R100 |
R210 |
|
Engine type |
Single cylinder, 4-Stroke(OHV) |
Single cylinder, 4-Stroke(OHV) |
Single cylinder, 4-Stroke(OHV) |
|
Bore×Stroke |
52×37mm |
56×40mm |
70×55mm |
|
Displacement |
78.5ml |
98ml |
212m |
|
Compression ratio |
9.0 : 1 |
8.5 : 1 |
9.0 : 1 |
|
Net power |
1.4kw / 3600rpm |
1.8kw / 3600rpm |
4.4kw / 3600rpm |
|
Net torque |
3.6N.m / 2500rpm |
5N.m / 2500rpm |
12N.m / 2500rpm |
|
PTO shaft rotation |
Counterclockwise(horizontal shaft output) |
Counterclockwise(horizontal shaft output) |
Counterclockwise(horizontal shaft output) |
|
Ignition system |
Transistorized magneto ignition |
Transistorized magneto ignition |
Transistorized magneto ignition |
|
Starting system |
Recoil / Electric starter |
Recoil / Electric starter |
Recoil / Electric starter |
|
lubrication system |
Forced splash |
Forced splash |
Forced splash |
|
Carburetor |
Flat suction valve carburetor |
Flat suction valve carburetor |
Flat suction valve carburetor |
|
Governor system |
Centrifugal mechanical |
Centrifugal mechanical |
Centrifugal mechanical |
|
Air cleaner |
Foam |
Foam |
Dual elements(paper or foam) |
|
Oil capacity |
0.35L |
0.35L |
0.55L |
|
Fuel tank capacity |
1.8L |
1.8L |
3.6L |
|
Dimensions(L x W x H) |
310×290×310mm |
310×290×310mm |
390×320×345mm |
|
Net weight |
10kg |
10kg |
16kg |
|
Fuel consumption |
≤450g/kw·h |
≤450g/kw·h |
≤395g/kw·h |
|
SPECIFICATIONS |
R225 |

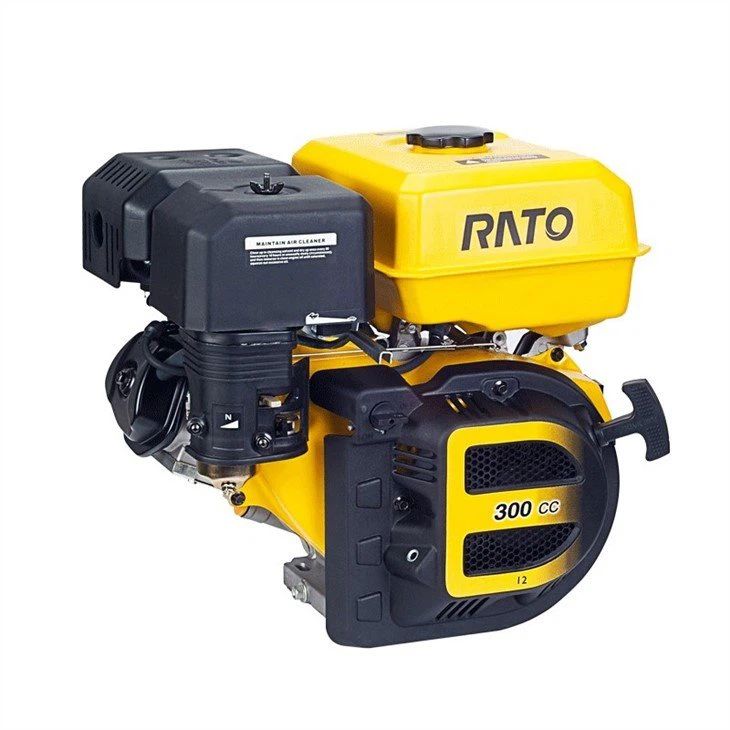

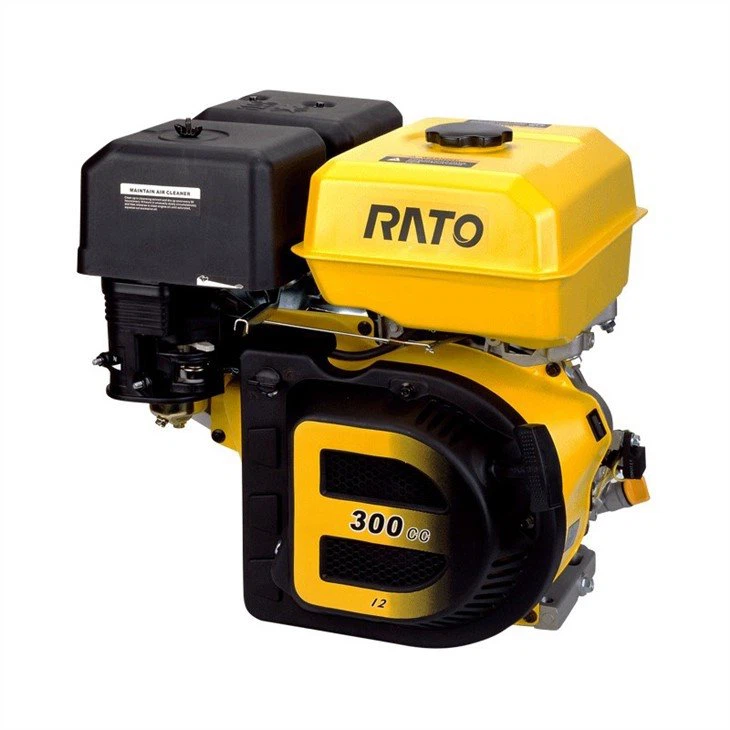

R300 |
R390 |
|
Engine type |
Single cylinder, 4-Stroke(OHV) |
Single cylinder, 4-Stroke(OHV) |
Single cylinder, 4-Stroke(OHV) |
|
Bore×Stroke |
70×58mm |
80×60mm |
88×64mm |
|
Displacement |
223m |
301ml |
389ml |
|
Compression ratio |
9.0 : 1 |
8.5 : 1 |
8.5 : 1 |
|
Net power |
4.5kw / 3600rpm |
6.0kw / 3600rpm |
7.8kw / 3600rpm |
|
Net torque |
13N.m / 2500rpm |
18N.m / 2500rpm |
25N.m / 2500rpm |
|
PTO shaft rotation |
Counterclockwise(horizontal shaft output) |
Counterclockwise(horizontal shaft output) |
Counterclockwise(horizontal shaft output) |
|
Ignition system |
Transistorized magneto ignition |
Transistorized magneto ignition |
Transistorized magneto ignition |
|
Starting system |
Recoil / Electric starter |
Recoil / Electric starter |
Recoil / Electric starter |
|
lubrication system |
Forced splash |
Forced splash |
Forced splash |
|
Carburetor |
Flat suction valve carburetor |
Flat suction valve carburetor |
Flat suction valve carburetor |
|
Governor system |
Centrifugal mechanical |
Centrifugal mechanical |
Centrifugal mechanical |
|
Air cleaner |
Dual elements(paper or foam) |
Dual elements(paper or foam) |
Dual elements(paper or foam) |
|
Oil capacity |
0.55L |
1.1L |
1.1L |
|
Fuel tank capacity |
3.6L |
5.4L |
6.5L |
|
Dimensions(L x W x H) |
390×320×345mm |
465×415×440mm |
465×415×440mm |
|
Net weight |
16.5kg |
30.5kg |
30.5kg |
|
Fuel consumption |
≤395g/kw·h |
≤374g/kw·h |
≤374g/kw·h |
|
SPECIFICATIONS |
R420 |
R670 |
R670-A |
|
Engine type |
Single cylinder, 4-Stroke(OHV) |
V-Twin cylinder,4-stroke(OHV) |
Single cylinder, 4-Stroke(OHV) |
|
Bore×Stroke |
90×66mm |
78×70mm |
99×87mm |
|
Displacement |
420ml |
670ml |
670ml |
|
Compression ratio |
8.5 : 1 |
8.1 : 1 |
8.0 : 1 |
|
Net power |
8.8kw / 3600rpm |
15.5kw / 3600rpm |
14.5kw / 3600rpm |
|
Net torque |
26.5N.m / 2500rpm |
45N.m / 2500rpm |
39N.m / 2500rpm |
|
PTO shaft rotation |
Counterclockwise(horizontal shaft output) |
Counterclockwise(horizontal shaft output) |
Counterclockwise(horizontal shaft output) |
|
Ignition system |
Transistorized magneto ignition |
Transistorized magneto ignition |
Transistorized magneto ignition |
|
Starting system |
Recoil / Electric starter |
Recoil / Electric starter |
Recoil / Electric starter |
|
lubrication system |
Forced splash |
Forced splash |
Forced Splash |
|
Carburetor |
Flat suction valve carburetor |
Flat suction valve carburetor |
Flat suction valve carburetor |
|
Governor system |
Centrifugal mechanical |
Centrifugal mechanical |
Centrifugal mechanical |
|
Air cleaner |
Dual elements(paper or foam) |
Dual elements(paper or foam) |
Dual elements(paper or foam) |
|
Oil capacity |
1.1L |
1.5L |
1.7 |
|
Fuel tank capacity |
6.5L |
——— |
---- |
|
Dimensions(L x W x H) |
465×415×440mm |
457×351×460mm |
591×389×322mm |
|
Net weight |
31kg |
45kg |
42kg |
|
Fuel consumption |
≤374g/kw·h |
≤374g/kw·h |
≤370g/kw·h |
