SPECIFICATIONS |

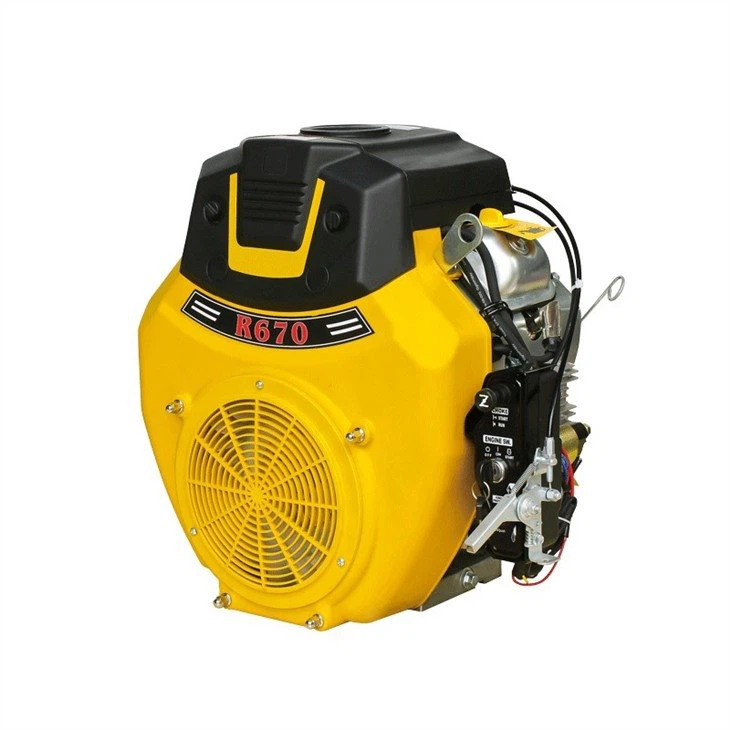

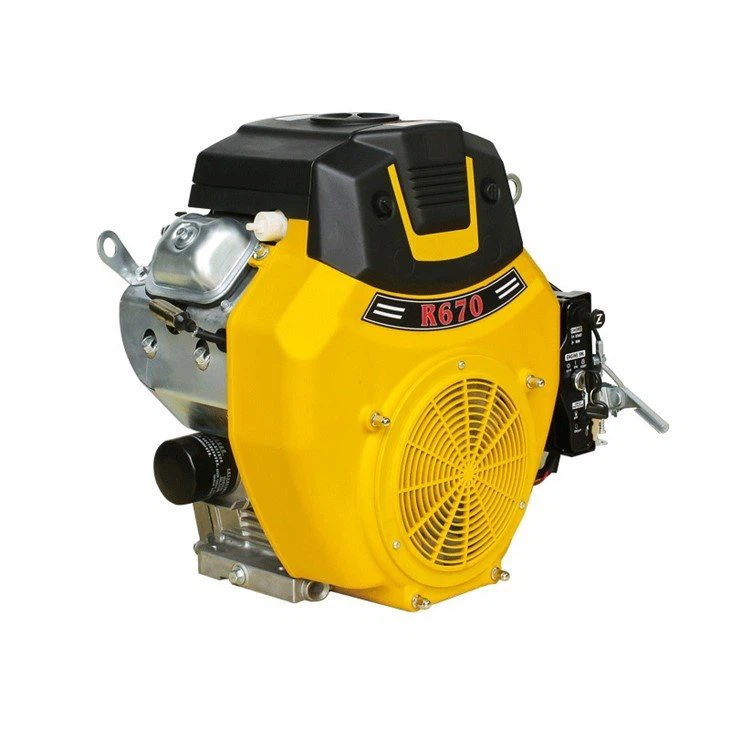

R670 |
R670-A |
R670D |
|
Engine type |
V-Twin cylinder,4-stroke(OHV) |
Single cylinder, 4-Stroke(OHV) |
Double cylinder, four stroke(OHV) |
|
Bore×Stroke |
78×70mm |
99×87mm |
78×70mm |
|
Displacement |
670ml |
670ml |
669ml |
|
Compression ratio |
8.1 : 1 |
8.0 : 1 |
8.5 : 1 |
|
Net power |
15.5kw / 3600rpm |
14.5kw / 3600rpm |
15.5kw / 3600rpm |
|
Net torque |
45N.m / 2500rpm |
39N.m / 2500rpm |
45N.m / 2500rpm |
|
PTO shaft rotation |
Counterclockwise(horizontal shaft output) |
Counterclockwise(horizontal shaft output) |
Counterclockwise(horizontal shaft output) |
|
Ignition system |
Transistorized magneto ignition |
Transistorized magneto ignition |
Recoil starter |
|
Starting system |
Recoil / Electric starter |
Recoil / Electric starter |
Electric starter |
|
lubrication system |
Forced splash |
ForcedSplash |
ForcedSplash |
|
Carburetor |
Flat suction valve carburetor |
Flat suction valve carburetor |
Double chamber float carburetor |
|
Governor system |
Centrifugal mechanical |
Centrifugal mechanical |
Electronic & mechanical speed contro |
|
Air cleaner |
Dual elements(paper or foam) |
Dual elements(paper or foam) |
Dual elements(paper or foam) |
|
Oil capacity |
1.5L |
1.7 |
1.6L |
|
Fuel tank capacity |
——— |
---- |
---- |
|
Dimensions(L x W x H) |
457×351×460mm |
591×389×322mm |
550×460×345mm |
|
Net weight |
45kg |
42kg |
45kg |
|
Fuel consumption |
≤374g/kw·h |
≤370g/kw·h |
≤370g/kw·h |
|
SPECIFICATIONS |
R740D |
R999D |
R500-V |
|
Engine type |
Double cylinder, four stroke(OHV) |
Double cylinder, four stroke(OHV) |
Single cylinder, 4-Stroke(OHV) |
|
Bore×Stroke |
82×70mm |
90×78.5mm |
94×72mm |
|
Displacement |
739.3ml |
999ml |
500ml |
|
Compression ratio |
8.5 : 1 |
8.7 : 1 |
9.0 : 1 |
|
Net power |
16.8kw / 3600rpm |
24.5kw / 3600rpm |
12.5kw / 3600rpm |
|
Net torque |
47N.m / 2500rpm |
68N.m / 2500rpm |
31N.m / 2500rpm |
|
PTO shaft rotation |
Counterclockwise(horizontal shaft output) |
Counterclockwise(horizontal shaft output) |
Counterclockwise(horizontal shaft output) |
|
Ignition system |
Transistor ignition |
Recoil starter |
Recoil starter |
|
Starting system |
Electric starter |
Electric starter |
Recoil / Electric starter |
|
lubrication system |
ForcedSplash |
ForcedSplash |
Forced splash |
|
Carburetor |
Flat suction valve carburetor |
Double chamber float carburetor |
Flat suction valve carburetor |
|
Governor system |
Electronic & mechanical speed contro |
Electronic & mechanical speed contro |
Centrifugal mechanical |
|
Air cleaner |
Dual elements(paper or foam) |
Dual elements(paper or foam) |
Dual elements(paper or foam) |
|
Oil capacity |
1.6L |
2.4L |
1.2L |
|
Fuel tank capacity |
---- |
---- |
7.0L |
|
Dimensions(L x W x H) |
550×460×345mm |
510×(385+96)×558mm |
475×425×440mm |
|
Net weight |
45kg |
50kg |
32kg |
|
Fuel consumption |
≤370g/kw·h |
≤370g/kw·h |
≤374g/kw·h |
