SPECIFICATIONS |
R1000 |
R2200 |
R3000 |
|
Engine type |
Single cylinder, 4-Stroke(OHV) |
Single cylinder, 4-Stroke(OHV) |
Single cylinder, 4-Stroke(OHV) |
|
Starting system |
Recoil starter |
Recoil starter |
Recoil starter |
|
Displacement |
99ml |
196ml |
212ml |
|
Bore×Stroke |
56×40mm |
68×54mm |
70×55mm |
|
Compression ratio |
8.5 : 1 |
8.5 : 1 |
8.5 : 1 |
|
Rated frequency |
50Hz |
50Hz |
50Hz |
|
Rated voltage |
230V |
230V |
220V/230V |
|
Rated power |
0.9kw |
2.0kw |
2.7kw |
|
Max. power |
1.0kw |
2.2kw |
3kw |
|
DC output |
12V / 8.3A |
12V / 8.3A |
12V / 8.3A |
|
Fuel tank capacity |
4L |
12L |
12L |
|
Full load continuum running time |
5.5h |
10h |
7h |
|
1/2 load continuum running time |
8.5h |
15h |
10h |
|
Noise (7m) |
64dB |
66dB |
70dB |
|
Dimensions (L×W×H) |
460×360×420mm |
593×465×458mm |
593×465×458mm |
|
Net weight |
27.5kg |
41kg |
45kg |
|
SPECIFICATIONS |

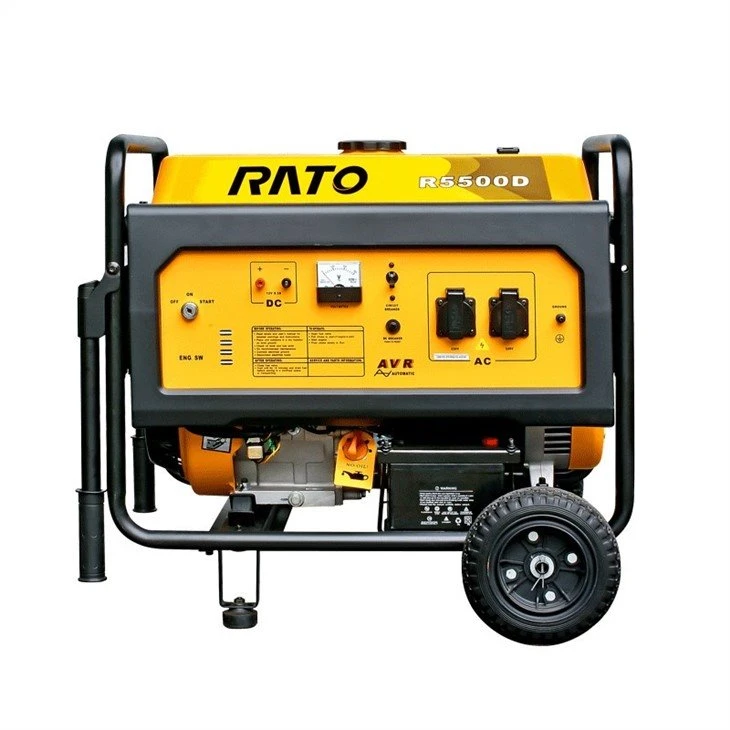

R5500D |
R6000DP |
|
Engine type |
Single cylinder, 4-Stroke(OHV) |
Single cylinder, 4-Stroke(OHV) |
|
Starting system |
Recoil / Electric starter |
Recoil / Electric starter |
|
Displacement |
389ml |
389ml |
|
Bore×Stroke |
88×64mm |
88×64mm |
|
Compression ratio |
8.5 : 1 |
8.5 : 1 |
|
Rated frequency |
50Hz |
60Hz |
|
Rated voltage |
230V |
120V / 240V |
|
Rated power |
5kw |
5.5kw |
|
Max. power |
5.5kw |
6.0kw |
|
DC output |
12V / 8.3A |
12V / 8.3A |
|
Fuel tank capacity |
25L |
25L |
|
Full load continuum running time |
8h |
7h |
|
1/2 load continuum running time |
12h |
11h |
|
Noise (7m) |
72dB |
74dB |
|
Dimensions (L×W×H) |
683×540×542mm |
683×540×542mm |
|
Net weight |
85kg |
85kg |
|
SPECIFICATIONS |
R7000D |
R8500D |
|
Engine type |
Single cylinder, 4-Stroke(OHV) |
Single cylinder, 4-Stroke(OHV) |
|
Starting system |
Recoil / Electric starter |
Recoil / Electric starter |
|
Displacement |
438ml |
499.6ml |
|
Bore×Stroke |
92×66mm |
94×72 |
|
Compression ratio |
8.5 : 1 |
8.5:1 |
|
Rated frequency |
50Hz |
50Hz |
|
Rated voltage |
230V |
230V |
|
Rated power |
6.3kw |
7.8kw |
|
Max. power |
6.8kw |
8.5kw |
|
DC output |
12V / 8.3A |
12V / 8.3A |
|
Fuel tank capacity |
25L |
25L |
|
Full load continuum running time |
5.5h |
5h |
|
1/2 load continuum running time |
10h |
7h |
|
Noise (7m) |
76dB |
78dB |
|
Dimensions (L×W×H) |
683×540×542mm |
683×540×542mm |
|
Net weight |
90kg |
102kg |
