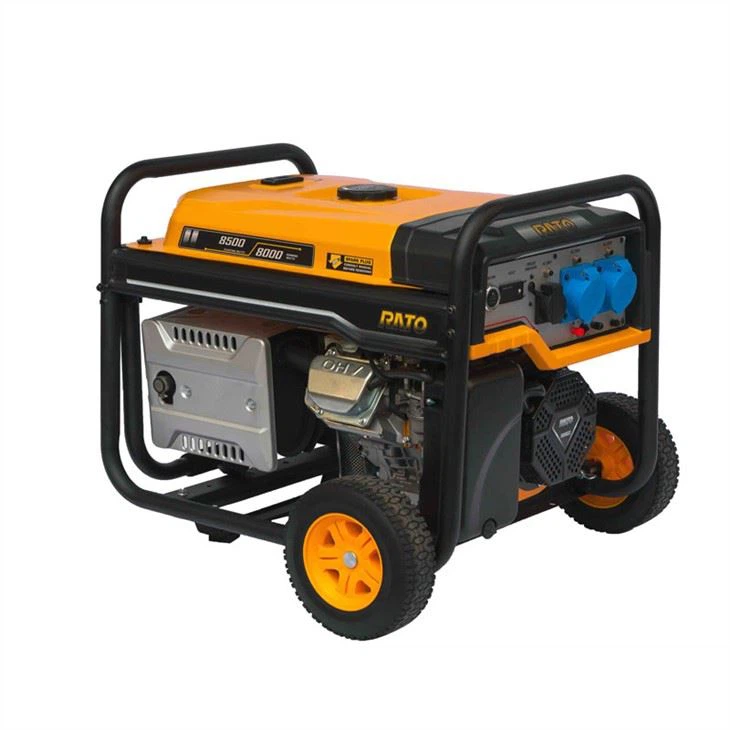

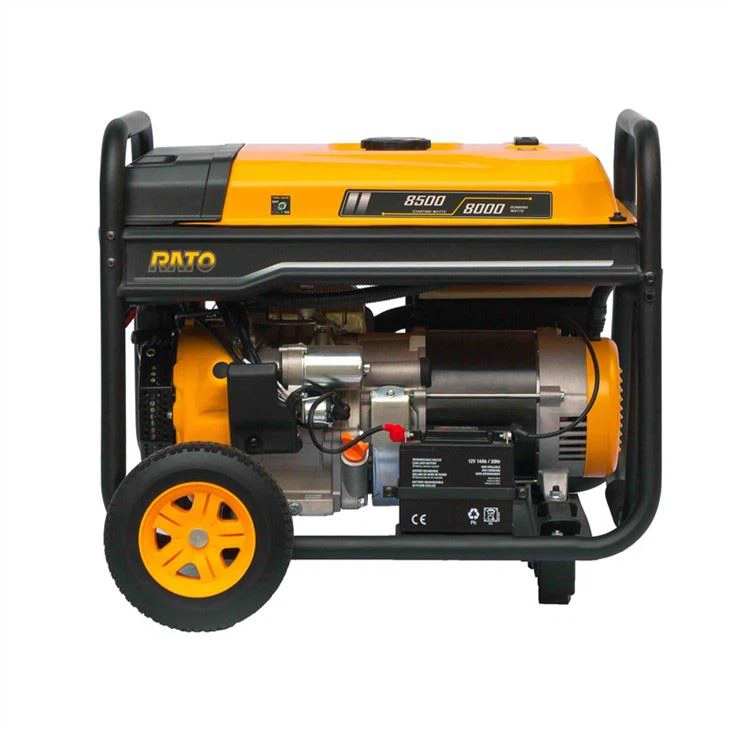

New Design Gasoline Generator

Commercial class muffler with large capacity can effectively reduce back pressure, promote full combustion before exhausting, reduce emission and operation noise
Send Inquiry

Product Introduction

SPECIFICATIONS

R3000

R5500D

Engine type

Single cylinder, 4-Stroke(OHV)

Single cylinder, 4-Stroke(OHV)

Starting system

Recoil starter

Recoil/Electric starter

Displacement

212ml

389ml

Bore×Stroke

70×55mm

88×64mm

Compression ratio

8.5 : 1

8.5 : 1

Rated frequency

50Hz

50Hz

Rated voltage

220V/230V

230V

Rated power

2.7kw

5kw

Max. power

3kw

5.5kw

DC output

12V / 8.3A

12V / 8.3A

Fuel tank capacity

12L

25L

Full load continuum running time

7h

8h

1/2 load continuum running time

10h

12h

Noise (7m)

70dB

72dB

Dimensions (L×W×H)

593×465×458mm

683×540×542mm

Net weight

45kg

85kg


SPECIFICATIONS

R6000D

R8500D

Engine type

Single cylinder, 4-Stroke(OHV)

Single cylinder, 4-Stroke(OHV)

Starting system

Recoil /    Electric starter

Recoil /    Electric starter

Displacement

420ml

499.6ml

Bore×Stroke

90×66mm

94×72mm

Compression ratio

8.5 : 1

8.5 : 1

Rated frequency

50Hz

50Hz

Rated voltage

230V

230V

Rated power

5.5kw

7.8kw

Max. power

6.0kw

8.5kw

DC output

12V / 8.3A

12V / 8.3A

Fuel tank capacity

25L

25L

Full load continuum running time

7h

5h

1/2 load continuum running time

11h

7h

Noise (7m)

74dB

80dB

Dimensions (L×W×H)

683×540×542mm

683×540×542mm

Net weight

87kg

102kg


New Design Gasoline Generator Features

1.The whole machine has a compact trapezoidal structure, with novelty appearance and concise design

2.With mature spherical combustion chamber engine, the power is  much stronger

3.Commercial class muffler with large capacity can effectively reduce back pressure, promote full combustion before exhausting, reduce emission and operation noise

4.Commercial class large capacity air filter, with better filtering effect, can effectively prolong the life time of the engine

5.Oil passage clearance function optional, can be maintained conveniently

6.Carburetor can be equipped with cleaning switch and one-button startup function optional

7.The handles can be packed with the whole machine, wheel structure adopts bolt form to meet the requirement of fast assembly.

8.Ultra-large oil tank to meet the requirement of uninterrupted operation of rated load for 8 hours

9.Adding fuel warning

10.Adding oil warning

11.With small size, low cost, convenient carrying and stable voltage,it is suitable for households and stores

12.There is LED light display on control panel. And One-button startup mode is optional to enhance the user's experience.

13.Oil and gas dual purpose


Main advantages

Fuel saving: excellent combustion efficiency produces high economic benefits.

Quiet: a low noise generator set that can be used at anytime and anywhere.

Reliable: stable automatic voltage regulation system and oil warning system make people feel at ease.

He has led the internal combustion engine technology for nearly half a century. His exquisite technology and rich experience are reflected in each engine, which ensures that each engine has stable performance and reliable work in long-term operation, thus greatly saving the time of maintenance.


Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.


Q: What is your term of payment?

A: 30% down payment before producing and 70% balance payment before shipping.


Q: Can we get some samples? Any charges?

A: Yes, free existing labels, you need to pay shipping cost.


Q: How can we get a quote?

A: Contact us with specification: such as material, design, size, shape, color, quantity,  surface finishing, etc.


Q: Do you have a showroom?

A: Yes, showroom with full range of products.
