Unique 3 channel air intake design help to cool the unit (engine, muffler, alternator, inverter) simultaneously.
2 chamber exhaust circle technology separates exhaust air/oil from cylinder head, enhancing combustion efficiency and extend unit lifetime, reduce the oil consumption.
SPECIFICATIONS | R1250iS/R1250isp | R2000iS /R2000isp | R3000iS /R3000isp |
Engine type | Single cylinder, 4-Stroke(OHV) | Single cylinder, 4-Stroke(OHV) | Single cylinder, 4-Stroke(OHV) |
Displacement | 60ml | 79.7ml | 212ml |
Bore× Stroke | 45×38mm | 48.6×43mm | 70×55mm |
Compression ratio | 8.2 : 1 | 8.7 : 1 | 9.0 : 1 |
Rated frequency | 50Hz 60Hz | 50Hz 60Hz | 50Hz 60Hz |
Rated voltage | 230V 120V | 230V 120V | 230V 120V |
Rated power | 1.0kw | 1.6kw | 2.8kw |
Max. power | 1.1kw | 1.8kw | 3.1kw |
DC output | 12V /5A | 12V / 8.3A | 12V / 8.3A |
Starting system | Recoil starter | Recoil starter | Recoil starter |
Fuel tank capacity | 2.6L | 4L | 8.5L |
Full load continuum running time | 3.5h | 4h | 5h |
1/2 load continuum running time | 5.2h | 6h | 9h |
Noise (7m) | 63dB | 67dB | 69dB |
Dimensions(L×W×H) | 450×240×380mm | 498×290×459mm | 605×432×493mm |
Net weight | 13kg | 22kg | 37kg |

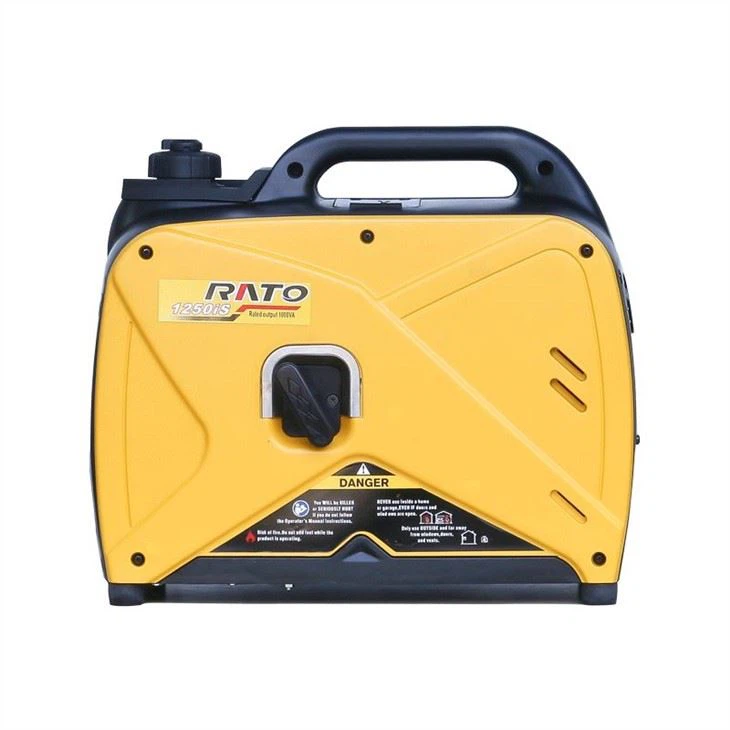

PRODUCT INTRODUCTION
• More optimized design
• Power increased 200W
• Electric start function
• Increased maintenance door, maintenance more convenient
• Optimize the wiring harness layout, the structure is more simplified, clean, reliable and easy to maintain
• The machine is equipped with wheel handle, easy to carry
• It has parallel function, multi-function display panel and other optional functions
• USB port function.
SPECIFICATIONS | R1250iS-3 /R1250ISP-3 | R2000iS-2 /R2000ISP-2 | R3000iE-2 /R3000IEP-2 |
Engine type | Single cylinder, 4-Stroke(OHV) | Single cylinder, 4-Stroke(OHV) | Single cylinder, 4-Stroke(OHV) |
Displacement | 60ml | 79.7ml | 212ml |
Bore×Stroke | 45×38mm | 48.6×43mm | 70×55mm |
Compression ratio | 8.2 : 1 | 8.7 : 1 | 9.0 : 1 |
Rated frequency | 50Hz 60Hz | 50Hz 60Hz | 50Hz 60Hz |
Rated voltage | 230V 120V | 230V 120V | 230V 120V |
Rated power | 1.0kw | 1.6kw | 3.0kw |
Max. power | 1.1kw | 1.95kw | 3.3kw |
DC output | 12V /5A | 12V / 8.3A | 12V / 8.3A |
Starting system | Recoil starter | Recoil starter | Recoil/Electric starter |
Fuel tank capacity | 3L | 4.2L | 10L |
Full load continuum running time | 4h | 3.5h | 5h |
1/2 load continuum running time | 6h | 6h | 8.5h |
Noise (7m) | 63dB | 68dB | 69dB |
Dimensions (L×W×H) | 460×270×390mm | 510×300×475mm | 645×480×500mm |
Net weight | 14kg | 23.5kg/24.5kg | 46kg |
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q: How long is your delivery time?
A: The general delivery time is 30-45 days after receiving your order confirmation. Anther, if we have the goods in stock, it will only take 1-2 days.
Q: What is your term of payment?
A: 30% down payment before producing and 70% balance payment before shipping.
Q: What’s your after-sale service?
A: Our quality warranty period is one year. Any quality problem will be solved to customer satisfactions.
Q: Can we get some samples? Any charges?
A: Yes, free existing labels, you need to pay shipping cost.
Q: Can l visit your factory?
A: By all means, we warmly welcome your arrival, Before you take off from your country, please let us know. We will show you the way and arrange time to pick you up if possible.
Q: How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better, we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
