PRODUCT INTRODUCTION
·OHV engine technology by RATO
·High delivery rates
·Rugged full frame protection with anti-vibration mounts
·Cast iron volute and impeller with a silicon carbide seal
·Complete accessories available
SPECIFICATIONS | RT50ZB26-3.6Q | RT80ZB26-3.6Q |
Engine | R200 | R200 |
Engine type | Single cylinder, 4-Stroke(OHV) | Single cylinder, 4-Stroke(OHV) |
Starting system | Recoil starter | Recoil starter |
Displacement | 196ml | 196ml |
Bore× Stroke | 68×54mm | 68×54mm |
Compression ratio | 9.0 : 1 | 9.0 : 1 |
Net power | 4.2kw / 3600rpm | 4.2kw / 3600rpm |
Fuel consumption | ≤395(g/kw·h) | ≤395(g/kw·h) |
Net torque | 11N.m / 2500rpm | 11N.m / 2500rpm |
Pump set | 2'' clean pump | 3'' clean pump |
Suction port diameter | 50mm (2'') | 75mm (3'') |
Discharge port diameter | 50mm (2'') | 75mm (3'') |
Suction head lift | 8m | 8m |
Total head lift | 26m | 28m |
Discharge capacity | 36m3/h | 60m3/h |
Dimensions (L×W×H) | 477×395×410mm | 500×395×445mm |
Net weight | 26.5kg | 29kg |

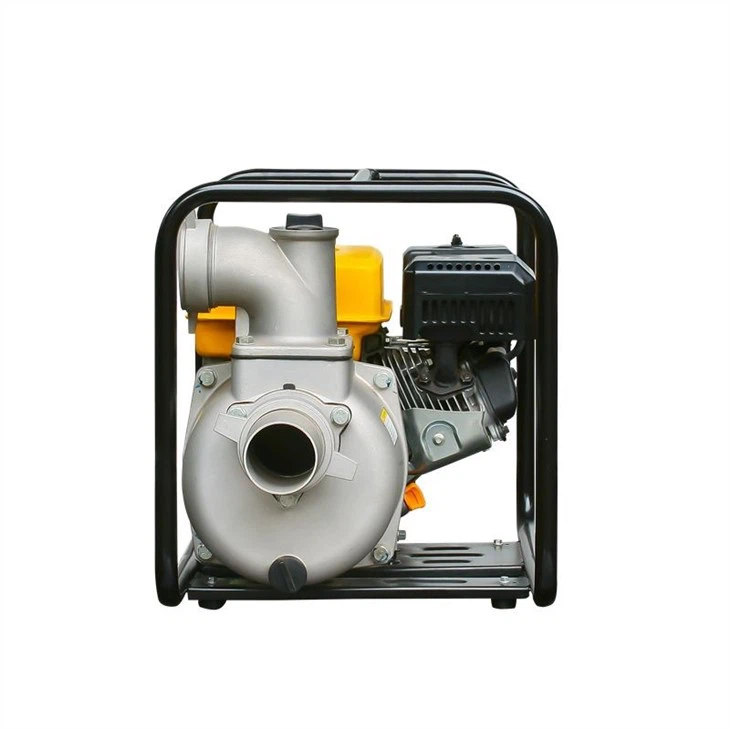

The clean water pump is used to transport clean water and other liquids with physical and chemical properties similar to clean water. It is suitable for industrial and urban water supply and drainage, pressurized water supply for high-rise buildings, garden sprinkler irrigation, fire pressurization, long-distance transmission, HVAC refrigeration cycle, farmland irrigation, bathroom and other cold and warm water circulation pressurization and equipment matching.
